The Speclite Marine Globe is designed to provide the most cost-effective solution for your agricultural building. With its solid and compact structure, it withstands all conditions. Its high light output reduces your energy consumption while maximizing the illumination of your installation. The dimmable version from 0 to 10V, compatible with source/sync signals, adapts perfectly to the specific needs of any project. Certified NEMA 4X, this fixture is ideal for demanding agricultural environments. The Speclite Marine Globe is the ultimate agricultural lighting solution.
CARACTERISTICS :
- Specifically designed for agricultural livestock buildings, it provides optimized lighting suited for the most demanding environments (NEMA 4X certified).
- Quick installation with its included junction box, featuring two entries for 3/4" PVC conduits and two entries for 1/2" PVC conduits.
- 0-10V Dimming: Adjust the light intensity down to 10% for precise lighting control based on your needs.
- DLC Premium Certified: Eligible for subsidies to optimize the return on your lighting investments.
NOMENCLATURE
| SERIE | DIMENSIONS | LENS | BODY COLOUR | VOLTAGE | CCT | MAX POWER | OPTION1 | OPTION2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| R2 | 6D | F | Y | D | 5 | 025 | 0 | D | SL |
| Marine light | 6" | frost | grey | 100-277V | 5000K | 25W | N/A | dim 0-10V |
PHOTOMETRIC SPECIFICATIONS
| LUMENS | 3,362 |
|---|---|
| CCT | 5000K |
| ANGLE | 120° |
| C.R.I. | 83.1 |
| DIMMABLE | 0-10V DC |
| PHOTOCELL | N/A |
| SENSOR | N/A |
| LUMEN MAINTENANCE L70 | 75,000 hrs |
| LED TYPE | SMD2835 |
| LED QTY | 120 |
| LED VOLTAGE | 34-40V DC |
| LED MAX CURRENT | 500mA | FLICKER | Flicker-Free |
ELECTRICAL SPECIFICATIONS
| REAL POWER | 25 W |
|---|---|
| VOLTAGE | 100-277V |
| EFFICIENCY | 134.48 lm/w |
| POWER FACTOR | 87.6 % |
| T.H.D | 15.5 % |
| FREQUENCY | 50/60Hz |
DIMENSIONS
MECHANICAL SPECIFICATIONS
| HOUSING MATERIAL | Plastic |
|---|---|
| HOUSING FINISH | Grey |
| LENS MATERIAL | Polycarbonate |
| LENS FINISH | Frost |
| WEIGHT | 0.80 KG |
| OPERATING TEMP. | -25°C ~ 50°C |
| APPLICATION | Indoor / Outdoor |
| INSTALLATION | Surface Mount |
| CABLE LENGTH | N/A |
CERTIFICATIONS
| REGULATORY LISTING | cETL |
|---|---|
| EFFICIENCY LISTING | DLC Standard |
| DLC ID | S-KSNZC9 |
| FCC | N/A |
| BARCODE | 882110006468 |
| ENVIRONMENTAL | IP65 |
| IK PROTECTION | IK08 |
| SURGE PROTECTION WITH GROUNDING | 2KV |
| SURGE PROTECTION WITHOUT GROUNDING | 1.2KV |
PACKAGING
| DIMENSION INNER CARTON |
DIMENSION OUTER CARTON |
QUANTITY MASTER | MASTER WEIGHT | PALLET QUANTITY |
|---|---|---|---|---|
|
6.22 cm X 6.22 cm X 4.33 cm
6 1/4 ″ X 6 1/4 ″ X 4 3/8 ″ |
N/A | N/A |
0.50 kg 1.10 lbs |
30
|

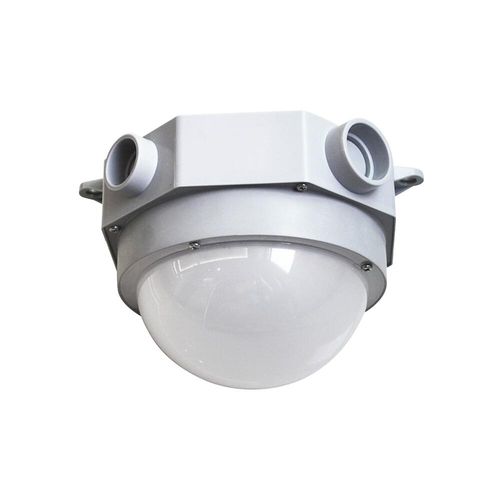

PRODUCT IMAGES
