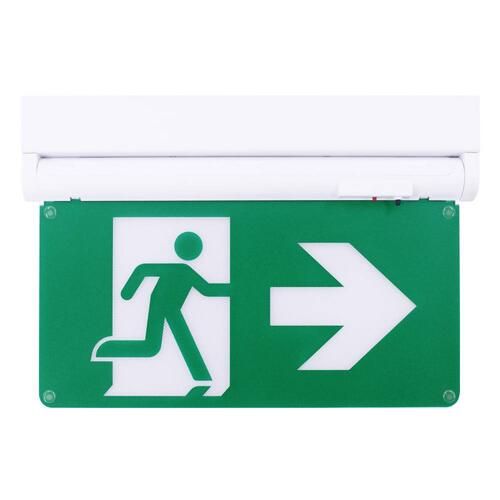

Emergency Light running man ABS 120-347V 180 mins
The Speclite emergency exit luminaire, made from durable thermoplastic ABS, stands out for its lightweight, sleek design and high impact resistance, making it an ideal solution for commercial and industrial environments. Compatible with voltages ranging from 120V to 347V, it easily integrates into various electrical systems. Equipped with a NiCad battery offering an exceptional 180-minute autonomy—double the Canadian standard of 90 minutes—this luminaire ensures continuous visibility in the event of a power outage. Its translucent design makes it a perfect choice to meet the highest architectural standards.
Caracteristics
- Emergency Lighting: Integrated battery providing an exceptional 180 minutes of runtime during a power outage, exceeding the Canadian standard of 90 minutes.
- Translucent Design: Perfect for your architectural lighting projects.
- Multiple Output Indicators: 3 pictograms to represent different directions, catering to all needs.
- Easy Ceiling Installation: Features a sleek design for seamless integration.
Nomenclature
| SERIE | Light Type | Material | Casing Colour | Voltage | Battery Runtime | Emergency Power | Battery Type | Options | VER. |
|---|---|---|---|---|---|---|---|---|---|
| EM | RM | A | W | F | 18 | 05 | N | 0 | BY |
| Emergency light | running man | ABS | white | 120-347V | 180 mins | 0.5W | NiCad | N/A | N/A |
| SERIE | EM | Emergency light |
| Light Type | RM | running man |
| Material | A | ABS |
| Casing Colour | W | white |
| Voltage | F | 120-347V |
| Battery Runtime | 18 | 180 mins |
| Emergency Power | 05 | 0.5W |
| Battery Type | N | NiCad |
| Options | N/A | N/A |
| VER. | BY | BY |
Photometric Specifications
| LUMENS | 20 |
|---|---|
| CCT | 6500K |
| ANGLE | 102 |
| C.R.I. | 75 |
| DIMMABLE | N/A |
| PHOTOCELL | N/A |
| SENSOR | N/A |
| LUMEN MAINTENANCE L70 | N/A |
| LED TYPE | 4014 |
| LED QTY | 16pcs |
| LED VOLTAGE | 3-6V |
| LED MAX CURRENT | 0.35A |
| FLICKER |
Mechanical Specifications
| HOUSING MATERIAL | ABS |
|---|---|
| HOUSING FINISH | White |
| LENS MATERIAL | Polycarbonate |
| LENS FINISH | N/A |
| WEIGHT | 0.90 KG |
| OPERATING TEMP. | |
| APPLICATION | Indoor |
| INSTALLATION | Surface Mount |
| CABLE LENGTH | N/A |
Electrical Specifications
| REAL POWER | 4.5 W |
|---|---|
| VOLTAGE | 120-347V |
| EFFICIENCY | 5 lm/w |
| POWER FACTOR | 0.4 % |
| T.H.D | 14.8 % |
| FREQUENCY | 50/60Hz |
Certifications
| REGULATORY LISTING | cUL |
|---|---|
| EFFICIENCY LISTING | N/A |
| DLC ID | |
| FCC | Yes |
| BARCODE | 882110007113 |
| ENVIRONMENTAL | IP40 |
| IK PROTECTION | N/A |
| SURGE PROTECTION WITH GROUNDING | 1KV |
| SURGE PROTECTION WITHOUT GROUNDING | 0.5KV |
Dimensions
Packaging
| DIMENSION INNER CARTON | DIMENSION OUTER CARTON | QUANTITY MASTER | MASTER WEIGHT | PALLET QUANTITY |
|---|---|---|---|---|
| 14.57 cm X 9.84 cm X 1.97 cm
14 5/8 ″ X 9 7/8 ″ X 2 ″ |
20.08 cm X 18.5 cm X 15.35 cm
20 1/8 ″ X 18 1/2 ″ X 15 3/8 ″ |
20 | 21.00 kg 46.30 lbs |
360
|
Products Images
